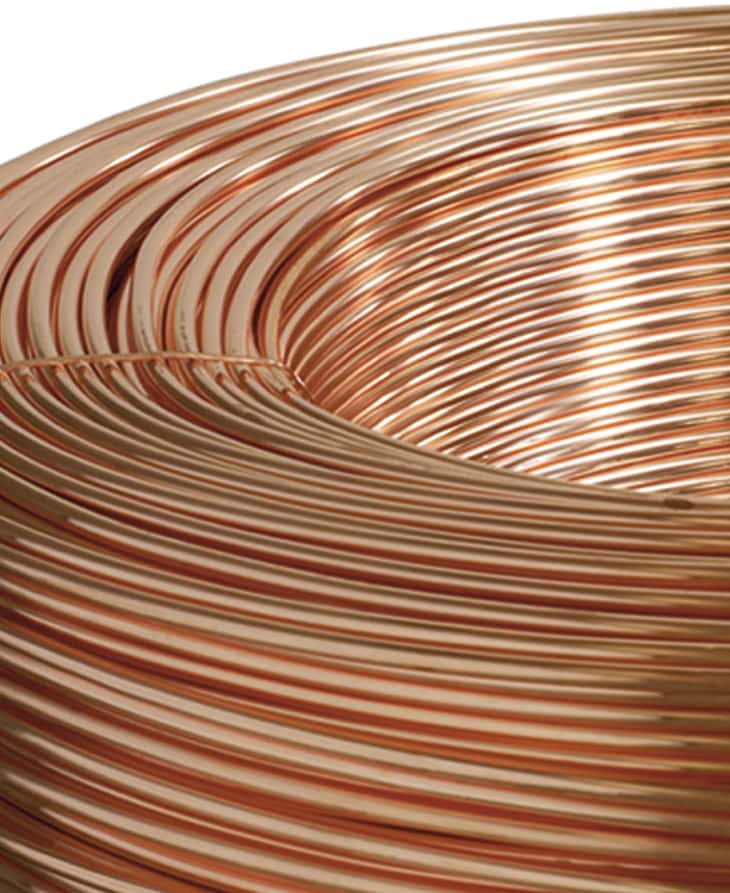

Copper alloy wire

Alloyed round copper wire available in different alloys. Intended for industrial and general purposes.

Medidas:

Available in a variety of alloys

Data sheet: Copper alloy wire

In our catalogue you will find a wide selection of alloyed copper wire with different chemical compositions. In the technical data sheet section you will find details of the mechanical characteristics relating to tensile strength, conventional yield strength, elongation and HV hardness. In addition, you will also find the equivalences according to different standards and trade names, as well as the diameter tolerances.



Alloyed copper wire is a versatile, high quality product, ideal for industrial applications. This product has great durability and resistance in any field of application. At Bronmetal we have a wide selection of alloys available so that you can choose the one that best suits your needs. In addition, with our weight calculator you can determine, depending on the material, format and measurements, the kg/m and m/roll of the copper wire you need.

Material Designation Chemical Composition % (m/m) Density g/cm3 approx.
Symbolic Numerical Element Cu Al Be Co Cr Fe Mn Ni P PB Si Te Zn Zr Total Others
CuBe2 CW101C min. Rest - 1,8 - - - - - - - - - - - - 8,3
max. - - 2,1 0,3 - 0,2 - 0,3 - - - - - - 0,5
cuBe2Pb CW102C min. Rest - 1,8 - - - - - - 0,2 - - - - - 8,3
max. - - 2,0 0,3 - 0,2 - 0,3 - 0,6 - - - - 0,5
CuCo1Ni1Be CW103C min. Rest - 0,4 0,8 - - - 0,8 - - - - - - - 8,8
max. - - 0,7 1,3 - 0,2 - 1,3 - - - - - - 0,5
CuCo2Be CW104C min. Rest - 0,4 2,0 - - - - - - - - - - - 8,8
max. - - 0,7 2,8 - 0,2 - 0,3 - - - - - - 0,5
CuCr1Zr CW106C min. Rest - - - 0,5 - - - - - - - - 0,03 - 8,9
max. - - - - 1,2 0,08 - - - - 0,1 - - 0,3 0,2
CuNi1Si CW109C min. Rest - - - - - - 1,0 - - 0,4 - - - - 8,8
max. - - - - - 0,2 0,1 1,6 - 0,02 0,7 - - - 0,3
CuNi2Be CW110C min. Rest - 0,2 - - - - 1,4 - - - - - - - 8,8
max. - - 0,6 0,3 - 0,2 - 2,4 - - - - - - 0,5
CuNi2Si CW111C min. Rest - - - - - - 1,6 - - 0,4 - - - - 8,8
max. - - - - - 0,2 0,1 2,5 - 0,02 0,8 - - - 0,3
CuSi1 CW115C min. Rest - - - - - - - - - 0,8 - - - - 8,8
max. - 0,02 - - - 0,8 0,7 - 0,02 0,05 2,0 - 1,5 - 0,5
CuSi3Mn1 CW116C min. Rest - - - - - 0,7 - - - 2,7 - - - - 8,8
max. - 0,05 - - - 0,2 1,3 - 0,05 0,05 3,2 - 0,4 - 0,5
CuTeP CW118C min. Rest - - - - - - - 0,003 - - 0,4 - - - 8,9
max. - - - - - - - - 0,012 - - 0,7 - - -
CuZr CW120C min. Rest - - - - - - - - - - - - 0,1 - 8,9
max. - - - - - - - - - - - - - 0,2 0,1

EN DIN ASTM BS JIS SN COMMERCIAL DENOMINATIONS
Symbolic Numerical Symbolic Numerical
CuBe1,7 CW100C CuBe1,7 2.1245 C17000 CB101 C1700 - -
CuBe2 CW101C CuBe2 2.1247 C17200 - C1720 - Elmedur B2
Mallory 73
CuBe
CuCo2Be CW104C CuCo2Be 2.1285 C17500 C112 - - Elmedur HA
CB4
Mallory 100
Class 3
NS
CuNi2Be CW110C CuNi2Be 2.0850 C17510 - - - -
CuCo1Ni1Be CW103C - - - - - - Elmedur HA
CB4
Mallory 100
Class 3
NS
CuCr1Zr CW106C CuCr1Zr 2.1293 C18150 CC102 - - Elmedur X
CRM16
Mallory 328
Class 2
CCS/Z
CuZr CW120C CuZr 2.1580 C15000 - - - -
- - - - C18000 - - CuNi2SiCr Ampco 940
NS5
Elbrodur D
CuNi2Si CW111C CuNi2Si 2.0855 C64700 - - - -
CuNi3Si CW112C CuNi3Si 2.0857 C70250 - - - -
CuNi10Fe1Mn CW352H CuNi10Fe1Mn 2.0872 C70600 CN102 C7060 - -
CuNi30Mn1Fe CW354H CuNi30Mn1Fe 2.0882 C71500 CN107 C7150 - -
TuCo 80/20 30w3
TuCo 75/25 10w3
CuNi12Zn29 CW405J - - C76200 - - - -
CuNi18Zn27 CW410J CuNi18Zn27 2.0742 C77000 NS107 C7701 - -
CuNi7Zn39Pb3Mn2 CW400J - - C79800 - - - -
CuNi10Zn42Pb2 CW402J - - C79620 NS101 - CuNi10Zn42Pb2 -
CuNi12Zn24 CW403J CuNi12Zn24 2.0730 C75700 NS104 - CuNi12Zn24 -
CuNi12Zn25Pb1 CW404J - - C79200 - - CuNi12Zn25Pb -
CuNi12Zn30Pb1 CW406J CuNi12Zn30Pb1 2.0780 C79300 - - - -
CuNi12Zn38Mn5Pb2 CW407J - - C79860 - - - -
CuNi18Zn19Pb1 CW408J CuNi18Zn19Pb1 2.0790 C76300 NS113 - - -

Designations Nominal Diameter Tensile Strength Rm N/mm2 Yield Limit at 0.2% Rp0.2 N/mm2 approx. Elongation Hardness HV
A100mm % min. A11.3 % min. A % min.
Material Metallurgical State
Symbolic Numerical from greather than up to and including min. max. min. max.
CuBe2 CuBe2Pb CW101C CW102C R390 0,2 - 1,0 390 540 (220) 35 - - - -
R410 - 1,0 10,0 410 540 (200) 30 25 20 - -
H090 0,2 - 10,0 - - - - - - 90 160
R510 1,0 - 10,0 510 610 (480) - - 15 - -
H120 1,0 - 10,0 - - - - - - 120 190
R580 1,0 - 10,0 580 690 (570) 6 8 10 - -
H170 1,0 - 10,0 - - - - - - 170 220
R750 0,2 - 1,0 750 1140 (920) 10 - - - -
R750 - 1,0 10,0 750 1140 (800) - - (2) - -
H220 0,2 - 10,0 - - - - - - 220 290
R1130 0,2 - 1,0 1130 1350 (1090) (3) - - - -
R1100 - 1,0 10,0 1100 1320 (1050) 5 7 8 - -
H350 0,2 - 10,0 - - - - - - 350 410
R1190 1,0 - 10,0 1190 1450 (1150) - - (2) - -
H360 1,0 - 10,0 - - - - - - 360 450
R1270 1,0 - 10,0 1270 1490 (1250) - - (2) - -
H370 1,0 - 10,0 - - - - - - 370 440
R1310 0,2 - 1,0 1310 1520 (1300) - - (1) - -
H390 0,2 - 1,0 - - - - - - 390 460
R1310 - 1,0 10,0 1310 1520 (1300) - - (1) - -
H380 - 1,0 10,0 - - - - - - 380 450
CuCo1Ni1Be CuCo2Be CuNi2Be CW103C CW104C CW110C R240 1,0 - 10,0 240 380 (135) 15 18 20 - -
H090 1,0 - 10,0 - - - - - - 90 -
R440 1,0 - 10,0 440 560 (445) - - (2) - -
H125 1,0 - 10,0 - - - - - - 125 -
R680 1,0 - 10,0 680 900 (635) 6 8 10 - -
H215 1,0 - 10,0 - - - - - - 215 -
R750 1,0 - 10,0 750 970 (760) 6 8 10 - -
H230 1,0 - 10,0 - - - - - - 230 -
CuCr1Zr CW106C M All Measurements Rough Manufacture
R360 2,0 - 10,0 360 460 (270) 11 13 15 - -
H130 2,0 - 10,0 - - - - - - 130 160
R440 2,0 - 10,0 440 540 (400) 8 9 10 - -
H165 2,0 - 10,0 - - - - - - 165 195
R470 2,0 - 10,0 470 570 (440) 5 7 8 - -
H170 2,0 - 10,0 - - - - - - 170 200
CuNi1Si CW109C M All Measurements Rough Manufacture
R450 1,5 - 6,0 450 - (440) 5 6 - - -
H135 1,5 - 6,0 - - - - - - 135 175
R410 - 6,0 15,0 410 - (400) - 6 8 - -
H120 - 6,0 15,0 - - - - - - 120 160
R650 1,5 - 6,0 650 - (620) 7 8 - - -
H190 1,5 - 6,0 - - - - - - 190 240
R590 - 6,0 15,0 590 - (580) 7 8 10 - -
H170 - 6,0 15,0 - - - - - - 170 220
CuNi2Si CW111C M All Measurements Rough Manufacture
R480 1,5 - 6,0 480 - (450) (4) 5 - - -
H140 1,5 - 6,0 - - - - - - 140 180
R410 - 6,0 15,0 410 - (400) - 6 8 - -
R130 - 6,0 15,0 - - - - - - 130 170
R700 1,5 - 6,0 700 - (680) 6 7 - - -
H200 1,5 - 6,0 - - - - - - 200 250
R640 - 6,0 15,0 640 - (620) - 8 10 - -
H190 - 6,0 15,0 - - - - - - 190 240

Diameter Tolerances of round wire

Nominal Diameter Tolerances
Greather than Up to and including Class A Class B Class C Class D Class E
- 0,25 ± 0,005 - - 0 0
-0,025 -0,006
0,25 0,5 ± 0,008 - - 0 0
-0,03 -0,010
0,5 1,0 ± 0,012 - - 0 0
-0,03 -0,014
1,0 2,0 ± 0,02 0 0 0 0
-0,10 -0,06 -0,04 -0,025
2,0 4,0 ± 0,03 0 0 0 0
-0,10 -0,06 -0,04 -0,025
4,0 6,0 ± 0,04 0 0 0 0
-0,12 -0,08 -0,05 -0,030
6,0 10,0 ± 0,06 0 0 0 0
-0,15 -0,09 -0,06 -0,036
10,0 18,0 ± 0,08 0 0 0 0
-0,18 -0,11 -0,07 -0,043
